Java Service Task in Designer / Modeler

Flowable Engine
21

run mvn install -DskipTests=true -Pdistro in the project root dir. It will install all snapshot dependencies to your local mvn repo.

22

Hi Martin,

Thanks for your help.Now I am able to generate jar and customize the pallete as shown below.

CustomServiceTask
CustomServiceTask1365×548 30.6 KB

But, when I try to validate the modeled process it gives error as shown below.

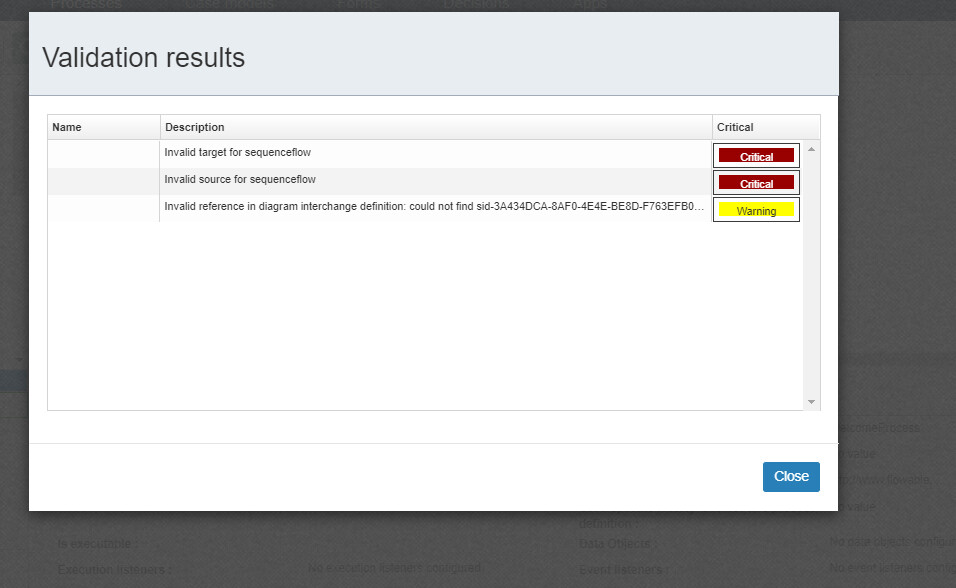

sequenflow.PNG956×588 58.6 KB

Please help me to solve the issue.

23

Hi,

It’s hard to guess what is going on. I would say that the problem is in the process model.

Martin

24

Hi Japelleg,

I am trying with customizing pallete.I was extend the pallete succesfully but facing the similar issue when validating the workflow.Kindly guide me in sorting the issue.

25

The fact the sequence flow validator isn’t seeing it as a real ‘task’, it means probably it isn’t registered as such. Can you share a bit how your palette elements looks like?

26

Hi Martin,

For adding custom task I had followed these two steps:

  1. Add new node to stencilset_bpmn.json. After this step new node is added to modeler paletes.
    2)Implement json -> bpmn and bpmn -> json converter and add it to the converters.
  2. Generate jar for the flowable ui and deploy the same in tomcat.
    CustomPalette
    CustomPalette1337×653 48.5 KB
    ValidationCustomTask.PNG1343×660 85.1 KB

Thanks martin and joram
