How do I deploy a diagram(zip) that contains External form(xml) on ui-admin

Flowable Application
1

the zip file contains:

  • dept-leader-audit.form

  • hr-audit.form

  • leave-formkey.bpmn

  • leave-formkey.png

  • start.form

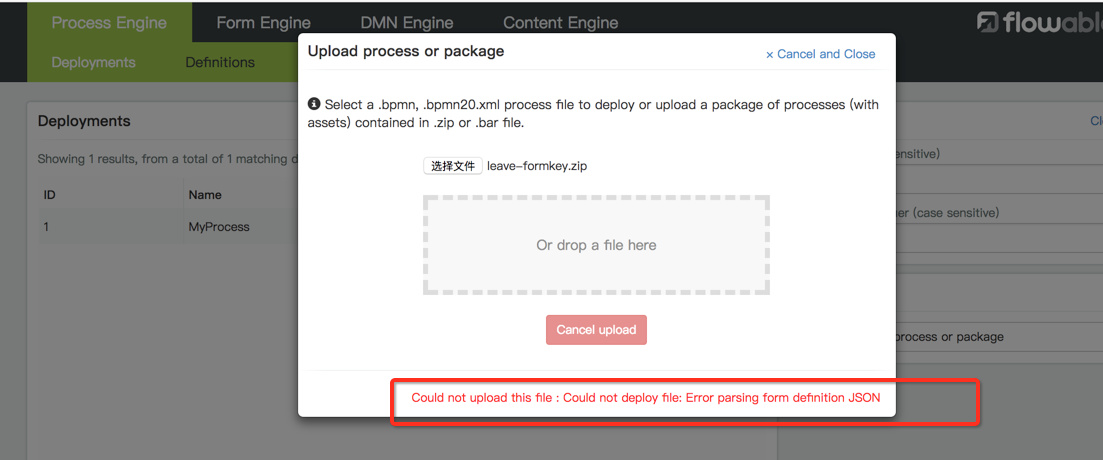

    when I upload the zip on ui-admin,result is …

  • start.form

<table border="1">
	<tr>
		<td>请假类型：</td>
		<td>
			<select id="leaveType" name="fp_leaveType">
				<option>公休</option>
				<option>病假</option>
				<option>调休</option>
				<option>事假</option>
				<option>婚假</option>
			</select>
		</td>
	</tr>
	<tr>
		<td>开始时间：</td>
		<td><input type="text" id="startTime" name="fp_startTime" class="datetime required" /></td>
	</tr>
	<tr>
		<td>结束时间：</td>
		<td><input type="text" id="endTime" name="fp_endTime" class="datetime required" /></td>
	</tr>
	<tr>
		<td>请假原因：</td>
		<td>
			<textarea id="reason" name="fp_reason"></textarea>
		</td>
	</tr>
</table>
  • leave-formkey.bpmn
<?xml version="1.0" encoding="UTF-8"?>
<definitions xmlns="http://www.omg.org/spec/BPMN/20100524/MODEL" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:activiti="http://activiti.org/bpmn" xmlns:bpmndi="http://www.omg.org/spec/BPMN/20100524/DI" xmlns:omgdc="http://www.omg.org/spec/DD/20100524/DC" xmlns:omgdi="http://www.omg.org/spec/DD/20100524/DI" typeLanguage="http://www.w3.org/2001/XMLSchema" expressionLanguage="http://www.w3.org/1999/XPath" targetNamespace="http://www.kafeitu.me/demo/activiti/leave">
  <process id="leave-formkey" name="请假流程-外置表单" isExecutable="true">
    <documentation>请假流程演示</documentation>
    <startEvent id="startevent1" name="Start" activiti:initiator="applyUserId" activiti:formKey="start.form"></startEvent>
    <userTask id="deptLeaderAudit" name="班主任审批" activiti:assignee="hejingyuan" activiti:candidateGroups="admin" activiti:formKey="dept-leader-audit.form"></userTask>
    <exclusiveGateway id="exclusivegateway5" name="Exclusive Gateway"></exclusiveGateway>
    <userTask id="hrAudit" name="书记审批" activiti:assignee="hejingyuan" activiti:candidateGroups="admin" activiti:formKey="hr-audit.form"></userTask>
    <sequenceFlow id="flow3" sourceRef="deptLeaderAudit" targetRef="exclusivegateway5"></sequenceFlow>
    <sequenceFlow id="flow5" name="同意" sourceRef="exclusivegateway5" targetRef="hrAudit">
      <conditionExpression xsi:type="tFormalExpression"><![CDATA[${deptLeaderPass == 'true'}]]></conditionExpression>
    </sequenceFlow>
    <endEvent id="endevent2" name="End"></endEvent>
    <sequenceFlow id="flow6" name="不同意" sourceRef="exclusivegateway5" targetRef="endevent2">
      <conditionExpression xsi:type="tFormalExpression"><![CDATA[${deptLeaderPass == 'false'}]]></conditionExpression>
    </sequenceFlow>
    <sequenceFlow id="flow7" sourceRef="hrAudit" targetRef="endevent2"></sequenceFlow>
    <userTask id="usertask1" name="学生申请" activiti:assignee="hejingyuan" activiti:formKey="start.form"></userTask>
    <sequenceFlow id="flow8" sourceRef="startevent1" targetRef="usertask1"></sequenceFlow>
    <sequenceFlow id="flow9" sourceRef="usertask1" targetRef="deptLeaderAudit"></sequenceFlow>
  </process>
  <bpmndi:BPMNDiagram id="BPMNDiagram_leave-formkey">
    <bpmndi:BPMNPlane bpmnElement="leave-formkey" id="BPMNPlane_leave-formkey">
      <bpmndi:BPMNShape bpmnElement="startevent1" id="BPMNShape_startevent1">
        <omgdc:Bounds height="35.0" width="35.0" x="70.0" y="103.0"></omgdc:Bounds>
      </bpmndi:BPMNShape>
      <bpmndi:BPMNShape bpmnElement="deptLeaderAudit" id="BPMNShape_deptLeaderAudit">
        <omgdc:Bounds height="55.0" width="105.0" x="310.0" y="93.0"></omgdc:Bounds>
      </bpmndi:BPMNShape>
      <bpmndi:BPMNShape bpmnElement="exclusivegateway5" id="BPMNShape_exclusivegateway5">
        <omgdc:Bounds height="40.0" width="40.0" x="450.0" y="100.0"></omgdc:Bounds>
      </bpmndi:BPMNShape>
      <bpmndi:BPMNShape bpmnElement="hrAudit" id="BPMNShape_hrAudit">
        <omgdc:Bounds height="55.0" width="105.0" x="550.0" y="93.0"></omgdc:Bounds>
      </bpmndi:BPMNShape>
      <bpmndi:BPMNShape bpmnElement="endevent2" id="BPMNShape_endevent2">
        <omgdc:Bounds height="35.0" width="35.0" x="724.0" y="237.0"></omgdc:Bounds>
      </bpmndi:BPMNShape>
      <bpmndi:BPMNShape bpmnElement="usertask1" id="BPMNShape_usertask1">
        <omgdc:Bounds height="55.0" width="105.0" x="150.0" y="93.0"></omgdc:Bounds>
      </bpmndi:BPMNShape>
      <bpmndi:BPMNEdge bpmnElement="flow3" id="BPMNEdge_flow3">
        <omgdi:waypoint x="415.0" y="120.0"></omgdi:waypoint>
        <omgdi:waypoint x="450.0" y="120.0"></omgdi:waypoint>
      </bpmndi:BPMNEdge>
      <bpmndi:BPMNEdge bpmnElement="flow5" id="BPMNEdge_flow5">
        <omgdi:waypoint x="490.0" y="120.0"></omgdi:waypoint>
        <omgdi:waypoint x="550.0" y="120.0"></omgdi:waypoint>
        <bpmndi:BPMNLabel>
          <omgdc:Bounds height="14.0" width="24.0" x="500.0" y="103.0"></omgdc:Bounds>
        </bpmndi:BPMNLabel>
      </bpmndi:BPMNEdge>
      <bpmndi:BPMNEdge bpmnElement="flow6" id="BPMNEdge_flow6">
        <omgdi:waypoint x="470.0" y="140.0"></omgdi:waypoint>
        <omgdi:waypoint x="471.0" y="254.0"></omgdi:waypoint>
        <omgdi:waypoint x="724.0" y="254.0"></omgdi:waypoint>
        <bpmndi:BPMNLabel>
          <omgdc:Bounds height="14.0" width="36.0" x="495.0" y="224.0"></omgdc:Bounds>
        </bpmndi:BPMNLabel>
      </bpmndi:BPMNEdge>
      <bpmndi:BPMNEdge bpmnElement="flow7" id="BPMNEdge_flow7">
        <omgdi:waypoint x="655.0" y="120.0"></omgdi:waypoint>
        <omgdi:waypoint x="741.0" y="120.0"></omgdi:waypoint>
        <omgdi:waypoint x="741.0" y="237.0"></omgdi:waypoint>
      </bpmndi:BPMNEdge>
      <bpmndi:BPMNEdge bpmnElement="flow8" id="BPMNEdge_flow8">
        <omgdi:waypoint x="105.0" y="120.0"></omgdi:waypoint>
        <omgdi:waypoint x="150.0" y="120.0"></omgdi:waypoint>
      </bpmndi:BPMNEdge>
      <bpmndi:BPMNEdge bpmnElement="flow9" id="BPMNEdge_flow9">
        <omgdi:waypoint x="255.0" y="120.0"></omgdi:waypoint>
        <omgdi:waypoint x="310.0" y="120.0"></omgdi:waypoint>
      </bpmndi:BPMNEdge>
    </bpmndi:BPMNPlane>
  </bpmndi:BPMNDiagram>
</definitions>
2

Hi,

File with extension .form are parsed by the Flowable Form Engine and this expects a JSON format. That’s why you are seeing the error. If you change the .form extension to .frm or some other extension name that is not picked up by the Flowable Engines it will deploy correctly.

Best regards,

Tijs

3

hi,I do as what you said , upload is successed,but the form can’t been rendered.

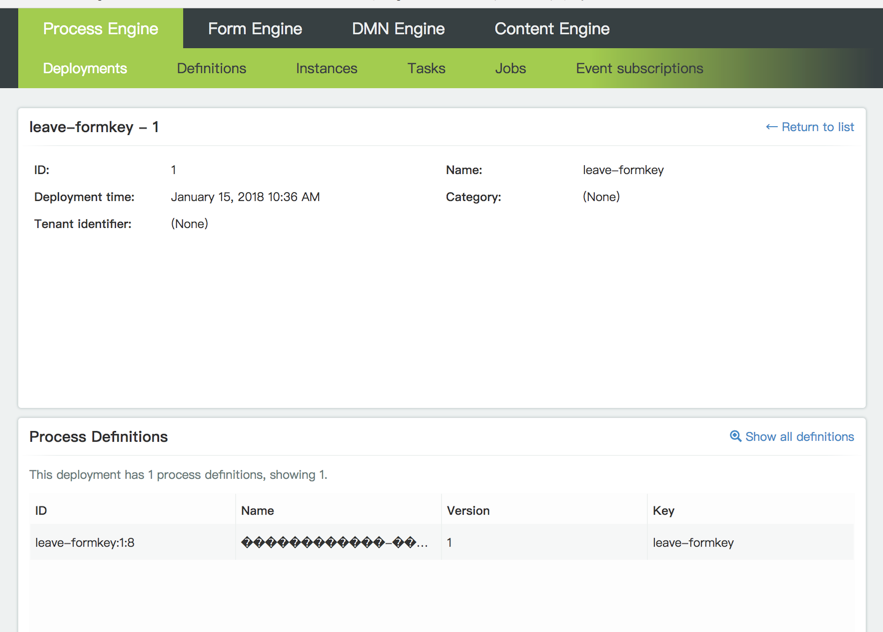

process deployment is sucessed.

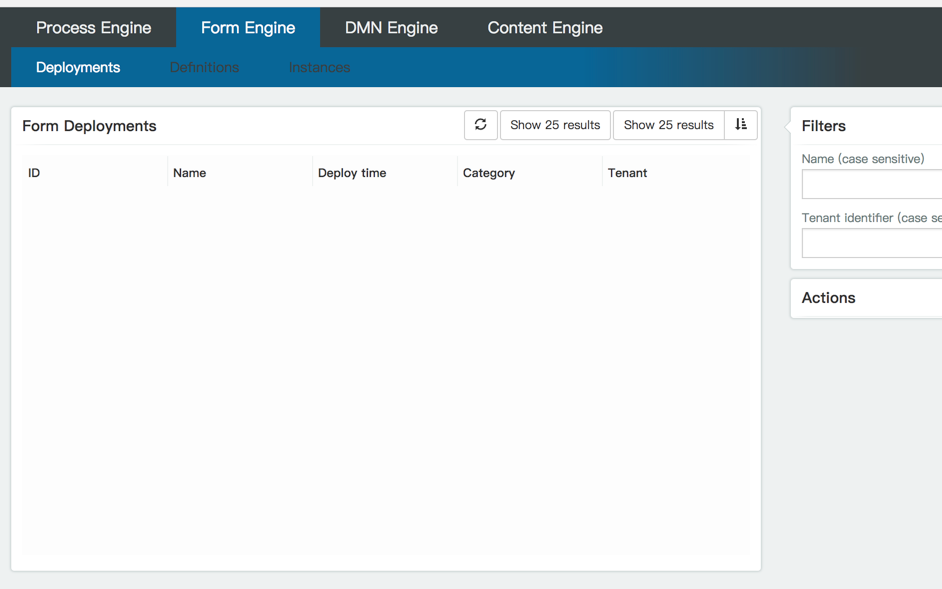

but how can I deploy the external form? the form file has been inclued in the zip file with the process xml file.

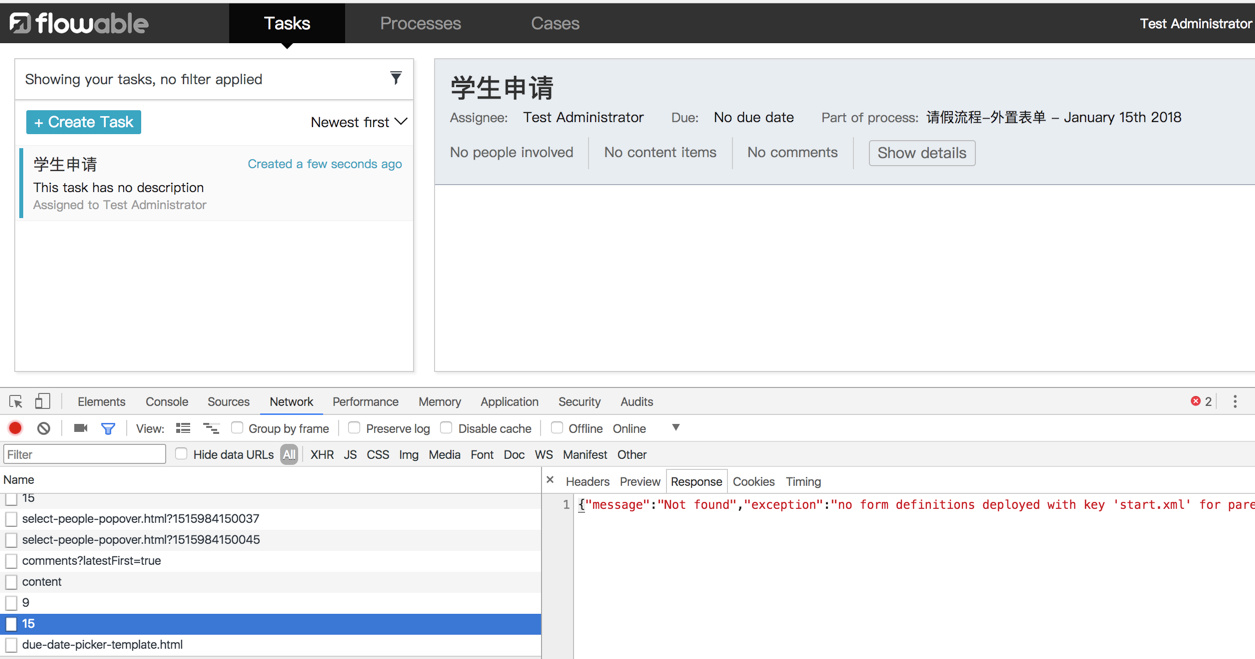

when I start a process,the request for the form is 404.

4

Hi,

If you want the form to be rendered in the Flowable Task application, then you will have to use the form definition JSON that’s part of the Flowable Form Engine and supported with the forms created by the Flowable Modeler. If you want to use a custom form definition like the one you are using, then you will have to implement the form rendering yourself.

Best regards,

Tijs

5

Hello @weidiancuishuying.

Did you resolve the problem? Currently I trying to deploy custom form and custom diagram image both within .bar file, and both are just ignored.

Have you got at least form OR image successfully deployed?
