When using flowable modeler to switch from MySQL database to PostgreSQL database Error

Flowable Engine
1

When using flowable modeler to switch from MySQL database to PostgreSQL database, when reading the model, read the table ‘act’ of the database_ De_ Error in column ‘thumbnail’ of model ', error reported‘ org.springframework.dao .DataIntegrityViolationException: Error attempting to get column ‘thumbnail’ from result set. Cause: org.postgresql.util . psqlexception: bad type value long: ', I’ve tracked debuug, because it’s binary, but PostgreSQL is read as long.

postgresql Code:
private long getFastLong(int columnIndex) throws SQLException, NumberFormatException {

byte[] bytes = this.this_ row[columnIndex - 1];

neg = false;

if ( bytes.length > 18) {

throw FAST_ NUMBER_ FAILED;

}

spring error：
org.springframework.dao.DataIntegrityViolationException: Error attempting to get column ‘thumbnail’ from result set. Cause: org.postgresql.util.PSQLException:

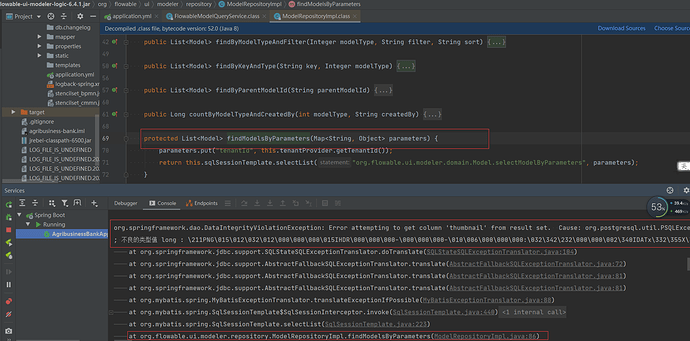

QQ图片20200623093801
QQ图片202006230938011830×905 173 KB

2

Which version of postgres are you using? How can we reproduce this? Is it enough to swap to postgres and create a model?

1 Like
3

flowable.version 6.4.1
postgresql database 10.13
postgresql driverClass 42.2.5

Because I was integrating springboot and creating a model error when I read it with modeler.
so I think You can create a model with the flowable modeler and read it

4

I’ve tried running it against postgres 9 and 10, and both work here.

Can you try with 6.5.0? At least, on master it works fine (which is what I’ve tested).

5

I don’t know why?
I try to use 6.5.0
postgres 9 and 10
It’s all the same
"Caused by: org.postgresql.util.PSQLException: bad type long
at org.postgresql.jdbc2.AbstractJdbc2ResultSet.toLong(AbstractJdbc2ResultSet.java:2992)
"

6

no problem in flowable. u can change mybatis or ibatis:
In application-dev.yml
mybatis:
configuration-properties:
blobType: CLOB

1 Like
