Claim button is missing

[Sebastiaan]

In certain conditions A cadidate user doesn’t have a claim button.
The users do however show in the candidate users.

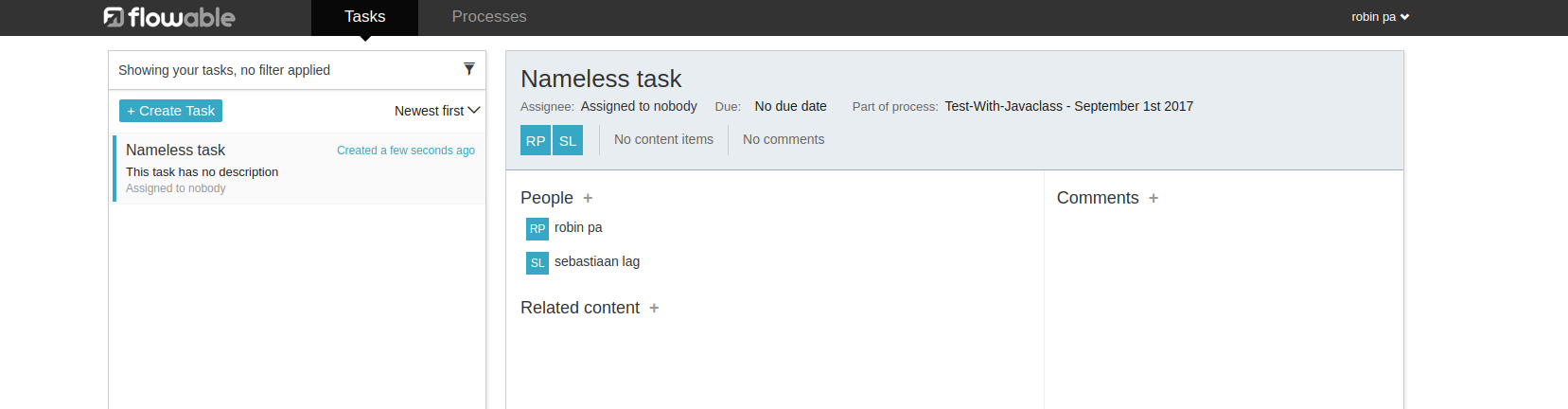

Screenshot as example.

As you can see, rpa and slag are candidate. I’m logged in as rpa, but I cannot claim.

All tests are done on a fresh install of flowable version 6.1.2 with users in a local mariadb.

Working condition:
Users are added during candidate process design:

    <userTask id="sid-970115D1-48B8-4338-BA0B-6BC58D66F767" flowable:candidateUsers="slag,rpa" flowable:formKey="test">
  <extensionElements>
    <modeler:user-info-email-slag xmlns:modeler="http://flowable.org/modeler"><![CDATA[slag@flowable.com]]></modeler:user-info-email-slag>
    <modeler:user-info-firstname-slag xmlns:modeler="http://flowable.org/modeler"><![CDATA[sebastiaan]]></modeler:user-info-firstname-slag>
    <modeler:user-info-lastname-slag xmlns:modeler="http://flowable.org/modeler"><![CDATA[lag]]></modeler:user-info-lastname-slag>
    <modeler:user-info-email-rpa xmlns:modeler="http://flowable.org/modeler"><![CDATA[rpa@flowable.org]]></modeler:user-info-email-rpa>
    <modeler:user-info-firstname-rpa xmlns:modeler="http://flowable.org/modeler"><![CDATA[robin]]></modeler:user-info-firstname-rpa>
    <modeler:user-info-lastname-rpa xmlns:modeler="http://flowable.org/modeler"><![CDATA[pa]]></modeler:user-info-lastname-rpa>
    <modeler:activiti-idm-candidate-user xmlns:modeler="http://flowable.org/modeler"><![CDATA[true]]></modeler:activiti-idm-candidate-user>
    <modeler:initiator-can-complete xmlns:modeler="http://flowable.org/modeler"><![CDATA[true]]></modeler:initiator-can-complete>
  </extensionElements>
</userTask>

non working condition with a string variable in the process declaration:
in this case ${users} is populated during process start using an input box.
The string would be similar to this: slag,rpa

    <userTask id="sid-D1BDD1F6-C3B5-4951-A0E4-2313A9DAC505" flowable:candidateUsers="${users}"></userTask>

non working condition with java code:

	public void notify(DelegateTask arg0) {
	System.out.println(arg0.getCandidates());

	arg0.addCandidateUser("rpa");
	arg0.addCandidateUser("slag");
}

[joram]

I’ve tried reproducing it, by adding a few candidate users in the modeler, but I can see the claim button for the three candidate users I added.

The xml has my users:

flowable:candidateUsers="fozzie,gonzo,admin"

Can you check in the database, more specifically whether the ACT_RU_IDENTITYLINK table contains the two candidate user entries?

[Sebastiaan]

If you define the candidate users in the xml there isn’t an issue.

I attached an app with 3 test cases.
CandidateUsersapp

1. CandidateUsersPredefined. (working)
   Candidate users are predefined in the xml: flowable:candidateUsers=“slag,rpa”

database contents:

±-----±-----±----------±------------±---------±---------±--------------±-------------+
| ID_ | REV_ | GROUP_ID_ | TYPE_ | USER_ID_ | TASK_ID_ | PROC_INST_ID_ | PROC_DEF_ID_ |
±-----±-----±----------±------------±---------±---------±--------------±-------------+
| 5248 | 1 | NULL | starter | admin | NULL | 5246 | NULL |
| 5253 | 1 | NULL | candidate | slag | 5252 | NULL | NULL |
| 5254 | 1 | NULL | participant | slag | NULL | 5246 | NULL |
| 5255 | 1 | NULL | candidate | rpa | 5252 | NULL | NULL |
| 5256 | 1 | NULL | participant | rpa | NULL | 5246 | NULL |
±-----±-----±----------±------------±---------±---------±--------------±-------------+

2. CandidateUsersWithVariable (not working)
   xml: flowable:candidateUsers=“${users}”
   Candidate users are requested during startup of the process and filled into a text field.
   users show up as candidate users but don’t have a claim button.

MariaDB [flowable]> SELECT * FROM ACT_RU_IDENTITYLINK ;
±-----±-----±----------±------------±---------±---------±--------------±-------------+
| ID_ | REV_ | GROUP_ID_ | TYPE_ | USER_ID_ | TASK_ID_ | PROC_INST_ID_ | PROC_DEF_ID_ |
±-----±-----±----------±------------±---------±---------±--------------±-------------+
| 5264 | 1 | NULL | starter | admin | NULL | 5262 | NULL |
| 5272 | 1 | NULL | candidate | rpa | 5271 | NULL | NULL |
| 5273 | 1 | NULL | participant | rpa | NULL | 5262 | NULL |
| 5274 | 1 | NULL | candidate | slag | 5271 | NULL | NULL |
| 5275 | 1 | NULL | participant | slag | NULL | 5262 | NULL |
±-----±-----±----------±------------±---------±---------±--------------±-------------+

3. candidateusersWithJavaClass
   xml: flowable:candidateUsers=“”
   Candidate users are added with a DelegateTask using the java code: arg0.addCandidateUser(“rpa”);

MariaDB [flowable]> SELECT * FROM ACT_RU_IDENTITYLINK ;
±-----±-----±----------±------------±---------±---------±--------------±-------------+
| ID_ | REV_ | GROUP_ID_ | TYPE_ | USER_ID_ | TASK_ID_ | PROC_INST_ID_ | PROC_DEF_ID_ |
±-----±-----±----------±------------±---------±---------±--------------±-------------+
| 5281 | 1 | NULL | starter | admin | NULL | 5279 | NULL |
| 5286 | 1 | NULL | candidate | rpa | 5285 | NULL | NULL |
| 5287 | 1 | NULL | participant | rpa | NULL | 5279 | NULL |
| 5288 | 1 | NULL | candidate | slag | 5285 | NULL | NULL |
| 5289 | 1 | NULL | participant | slag | NULL | 5279 | NULL |
±-----±-----±----------±------------±---------±---------±--------------±-------------+

[joram]

Many thanks for the excellent explanation and example zip.
You were right, both cases had a bug. The bug has been fixed here: https://github.com/flowable/flowable-engine/commit/36199dba40ed6426dc9455054902cd0abed3aa7d

[Sebastiaan]

Hi Joram, I compiled and installed 6.2.0-snapshot but I still encounter an issue using a java class.
The task I run is the following:

    <startEvent id="startEvent1"></startEvent>
<userTask id="UserTask1" flowable:assignee="rpa">
  <extensionElements>
    <flowable:taskListener event="create" class="eu.newtec.ibq.AssignUser"></flowable:taskListener>
    <modeler:activiti-idm-assignee xmlns:modeler="http://flowable.org/modeler"><![CDATA[true]]></modeler:activiti-idm-assignee>
    <modeler:assignee-info-email xmlns:modeler="http://flowable.org/modeler"><![CDATA[rpa@newtec.eu]]></modeler:assignee-info-email>
    <modeler:assignee-info-firstname xmlns:modeler="http://flowable.org/modeler"><![CDATA[Robin]]></modeler:assignee-info-firstname>
    <modeler:assignee-info-lastname xmlns:modeler="http://flowable.org/modeler"><![CDATA[Panis]]></modeler:assignee-info-lastname>
    <modeler:initiator-can-complete xmlns:modeler="http://flowable.org/modeler"><![CDATA[false]]></modeler:initiator-can-complete>
  </extensionElements>
</userTask>

The java class contains the following:

public class AssignUser implements TaskListener{

public void notify(DelegateTask delegateTask) {
	delegateTask.setAssignee("slag");
	delegateTask.addCandidateUser("edi");
	delegateTask.addCandidateGroup("lgoe");
	System.out.println(delegateTask.getAssignee());
	System.out.println(delegateTask.getCandidates());
}

}

Console output:

rpa

So I’m sure the Java class runs, since i get console output, but assigning or adding candidates isn’t done.

[joram]

There seems to be an issue indeed: the problem is that calling setAssignee() (and the others) doesn’t propagate the changes to the history. That’s something that needs fixing (but I doubt it’ll be possible for the next release).

As a current workaround, you need to go through the service. You can get the service via the CommandContextUtil: CommandContextUtil.getProcessEngineConfiguration().getTaskService().setAssignee();

[Sebastiaan]

Hi Joram,

Thx for looking into this.

I did some more testing using CommandContextUtil.
The delegate task I’m using is the following:

	public void notify(DelegateTask delegateTask) {
	CommandContextUtil.getProcessEngineConfiguration().getTaskService().setAssignee(delegateTask.getId(), "rpa");
	CommandContextUtil.getProcessEngineConfiguration().getTaskService().addCandidateUser(delegateTask.getId(), "edi");
	CommandContextUtil.getProcessEngineConfiguration().getTaskService().addCandidateUser(delegateTask.getId(), "lgoe");
	CommandContextUtil.getProcessEngineConfiguration().getTaskService().addCandidateUser(delegateTask.getId(), "slag");
	System.out.println("candidates: " + delegateTask.getCandidates());
}

Console output is:
candidates: [IdentityLinkEntity[id=52513, type=candidate, userId=edi, taskId=52507], IdentityLinkEntity[id=52519, type=candidate, userId=slag, taskId=52507], IdentityLinkEntity[id=52516, type=candidate, userId=lgoe, taskId=52507]]

Candidates are shown in the candidate list in flowable-task but the claim button is still missing.

[joram]

The claim button is missing because there is an assignee being set. When an assignee is set, that assignee has claimed the task.

[bogdan]

Hi,

I have just installed version 6.2.1 and I cannot claim a task. It is in status “Assigned to nobody” and there is no claim button. I am running in H2 configuration mode.

In the following it is the process def:

<?xml version="1.0" encoding="UTF-8"?> A vacation request model Provide vacation info

Can you help me?

[joram]

Are you sure the user is part of the ‘management’ group? I’ve tried it here (with master version though) and the claim button is there.

[srinathganesh]

My observation is that “admin” (default user) does not get claim button but other users get the claim button somehow.

User case:

• A user assigns “admin” as a participant
